New Ballast Flat Roof Solar Mounting System

New Ballast Flat Roof Solar Mounting System

The ballast roof solar mounting system can be laid out either facing south or east-west.

  • Brand:

    Wintop
  • Product Origin:

    China
  • Color:

    Nature, or can be customized
  • Shipping Port:

    Xiamen
  • Product Detail

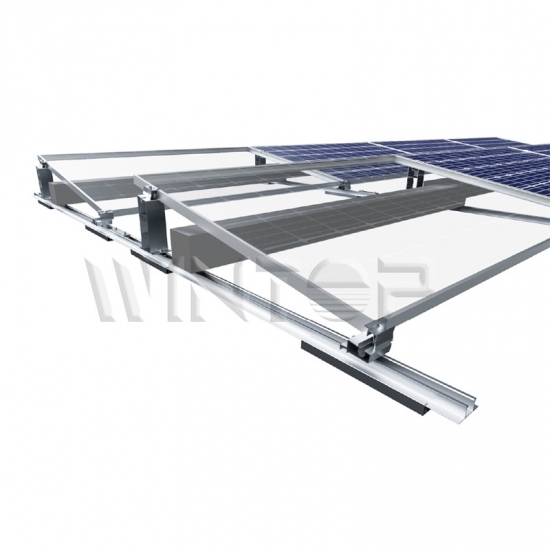

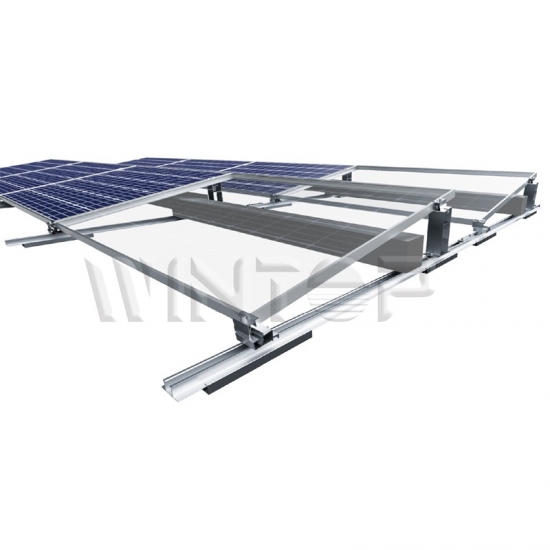

New Ballast Flat Roof Solar Mounting System

solar tin roof mount


Product Description

The new flat roof ballast solar mounting system is the latest ballast solar system developed by Wintop. The newly designed front and rear feet allow the panels to be fixed directly with panel clips without using guide rails, which can save component costs. The system has two layouts, traditional south-facing layout and east-west layout. And an east-west layout allows more solar panels to be placed in the same area, thereby generating more electricity.


Technical Parameters

Installation location Concrete flat roof
Installation foundation Concrete foundation
Installation angle Customize
Wind load 60m/s(216kmh/133mph)
Snow load 1.4KN/m²
Distance from module lowest point to the ground Roof height
Applicable module type Mono-crystalline, Poly-crystalline, Double wave and Thin film
Module Orientation Horizontal, Vertical
Design standard AS/NZS1170,JIS C 8955-2017
Bracket material AL6005-T5(Anodized Oxidation)
Fastener Material Stainless steel SUS304
Warranty&Duration 10 years&More than 20 years


Features & Benefits

  • High corrosion resistance and salt tolerance.
  • Fixed with concrete ballast to achieve strong wind resistance.
  • Many solutions to meet different customers' requirements.
  • East west aerodynamic design reduces wind loading.
  • Various layout methods

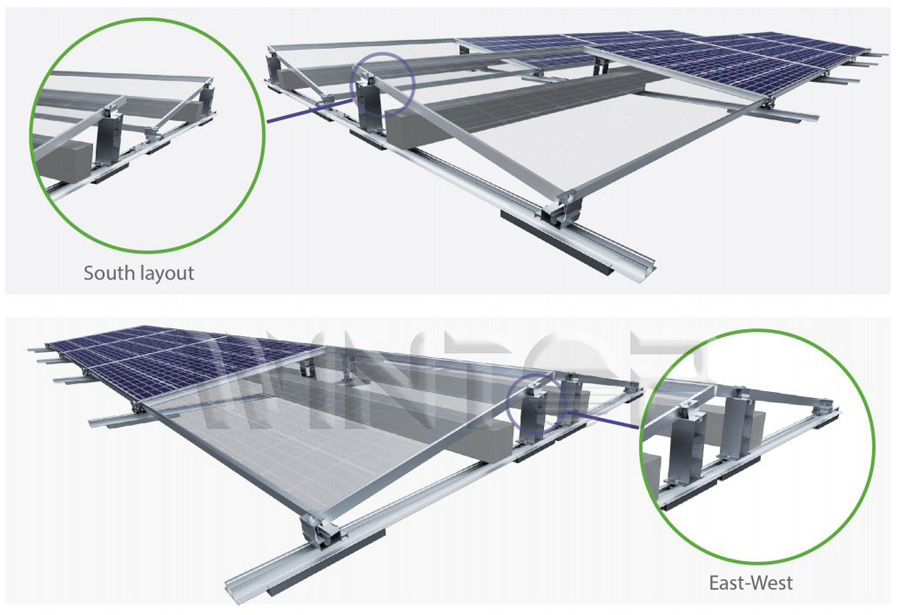

Ballast Roof System Layout

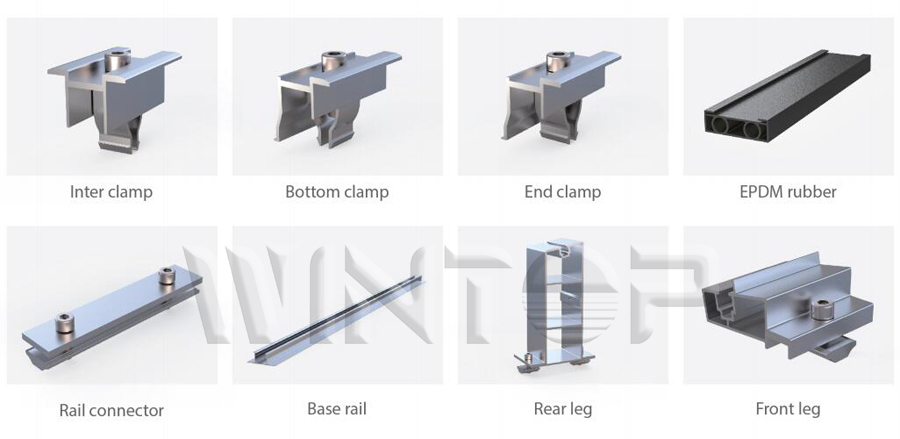

Components

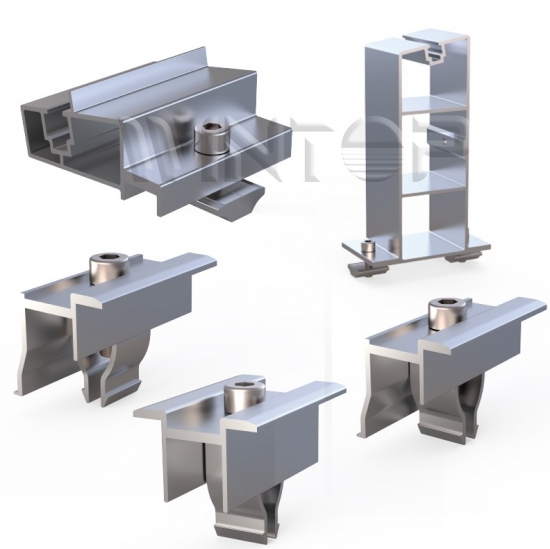

Solar Ballast Roof Bracket Components


Project

solar ballasted system case

Certificate






QC

WinTop Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.We have strictly quality control 6S for all our products.


FAQ

(1) Will the solar panels cause my roof to leak?

No, all of our mounting solutions are professionally engineered, guaranteed to ensure the integrity of your roof.To prevent water intrusion on shingled roofs, we use metal flashing kits that create a watertight seal every time.

(2) Where is your factory located?

Our factory address is : No.585, HongTang Road, TongAn District,Xiamen,City,Fujian,P.R.China.

(3) How can I get to your factory?

When you arrive in the Xiamen International Airport,then we can pick you up there,and next visit our head office and factory.

(4) If i will need to stay in your place for few days, is that possible to book the hotel for me?

It’s always my pleasure, hotel booking service is available.

(5) What is your minimum order quantity, can you send me samples?

Our minimum quantity is 1 set, and Yes it is acceptable to send you samples if you need,then you just need to pay the shipping fee of the samples.If you need,please feel free to send your inquiry to me.
