Solar Installation Bracket Roof Clamp Assembly

Solar Installation Bracket Roof Clamp Assembly

This PV roof clamp is a general photovoltaic installation method, suitable for various color steel tile roofs, large logistics warehouses, photovoltaic vegetable greenhouses, etc.

  • Product Origin:

    中国
  • Color:

    銀色
  • Shipping Port:

    厦門港
  • Lead Time:

    1週間
  • Brand:

    Wintop
  • Model:

    RF-0036
  • Product Detail

Solar Installation Bracket Roof Clamp Assembly


Product Description

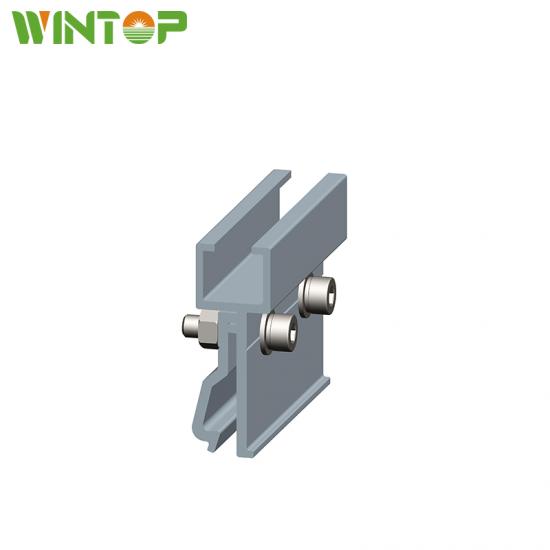

The solar roof clamp assembly is made of stainless steel SUS304, aluminum AL6005-T5 and other materials, and is anodized, suitable for various installation environments. The roof clamp has passed the thermal cycle (+80C~-20C), high temperature accelerated aging test, salt water leaching test and other tests.

This standing seam metal roof bracket is pre-assembled for quick installation. This standing seam metal roof clip for solar panel mounting systems is simple and cost-effective to install.

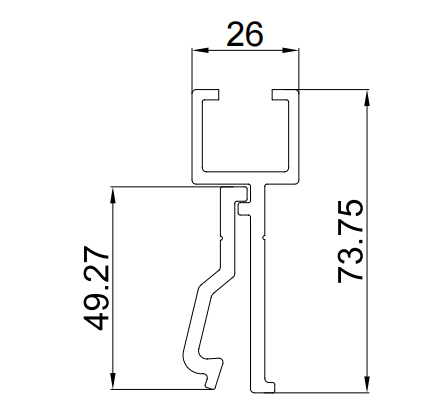

Technical Parameters


The material and quantity of its components are as follows

Name Clamp Accessories 1
Clamp Accessories 2
flat washer
Hexagon nuts (waxed)
Hexagon socket head bolt
spring washer
Size 100mm 100mm M8 M8
M8x30 M8
Quantity 1 1 4 2 2 2
Material
Aluminium
Aluminium
SUS304/316
SUS304/316
SUS304/316 SUS304/316


Our Advantage

A. Qualified Manufacturer;

B. Reliable Quality Control;

C. Competitive Price;

D. High Efficiency working (24*7 hours);

E. One-stop Service.


Certificate







QC

Solar Ground Mount System Quality inspection


FAQ

1.What is the delivery time of your machine?
Generally it should be within 14days since order placed,if there are any special requirements,let us know please.
2.What’s your difference with other suppliers?
The biggest difference between us is that although we are small scale, we offer the best service that we can do for customers,such as, we will oxidized each sides of products.
3.Why we cannot find your website on the internet?
Because this is a new web.If you turn more pages,I believe you will see it and we are upgrading our web too so that it could be listed on the first page.
4.What is your design standard?
For various countries,the standards that we follow are different,such as in Japan,it should be JIS2017 or JIS2019
5.Generally,when we look for suppliers on the internet,we worry about their credits,so how should you promise that we can trust you?
As you know,we are young,but we have survived for 5 years since 2016,which is worthy-trust,and what’s more,if you need,our business licence could be provided.
